Headlamp Switch – T3
For T3 models without Dim Dip.
Please fill in the information along with your question below and we will get back to you as soon as possible.
Product Question
Details
Aftermarket headlamp switch for most VW T3 models 1980 until August 1990 (1991 model year).
Fitted up to VIN: WV2 ZZZ (24/25) Z M (G/H) 001 000
This is the most common switch and replace most earlier headlamp switch iterations.
This switch will also work on UK models with “Dim-Dip” although the Dim-Dip function will be disabled.
Further notes for UK vans with Dim Dip.
Dim Dip is a pointless and confusing piece of UK vehicle lighting legislation from the 80’s, Dim dip is when you turn the side lights on with the ignition and the headlamps turn on but glow dimly.
So, you would have off, side lights, dim-dip, dip then main, yep, 4 intensities of headlamps, totally pointless but thankfully after having a few conversations with MOT testers the Dim-Dip system is no longer a legal requirement nor tested at the MOT.

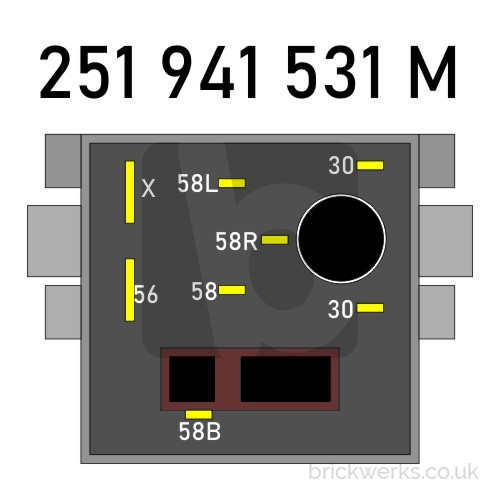

This switch can be used in the place of the Dim-Dip headlamp switch, the important terminals are in the right place but they are missing the extra terminals for Dim Dip, obviously that will disable the Dim-Dip system.
Additional Information
Our Part No.
T3941531M
Manufacturer
Aftermarket
VW No
251 941 531 M; 251 941 531 B; 321 941 531 D; 251 941 531 K
2 in stock
